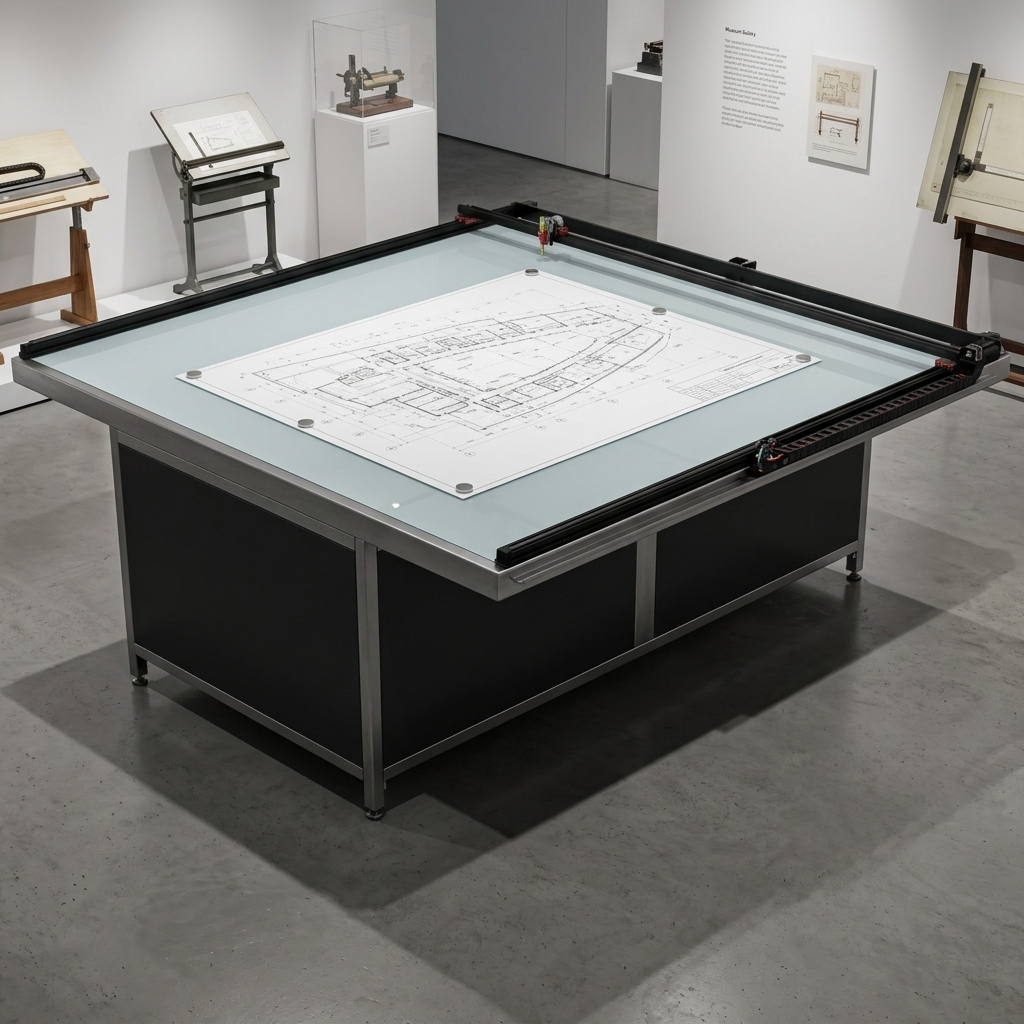

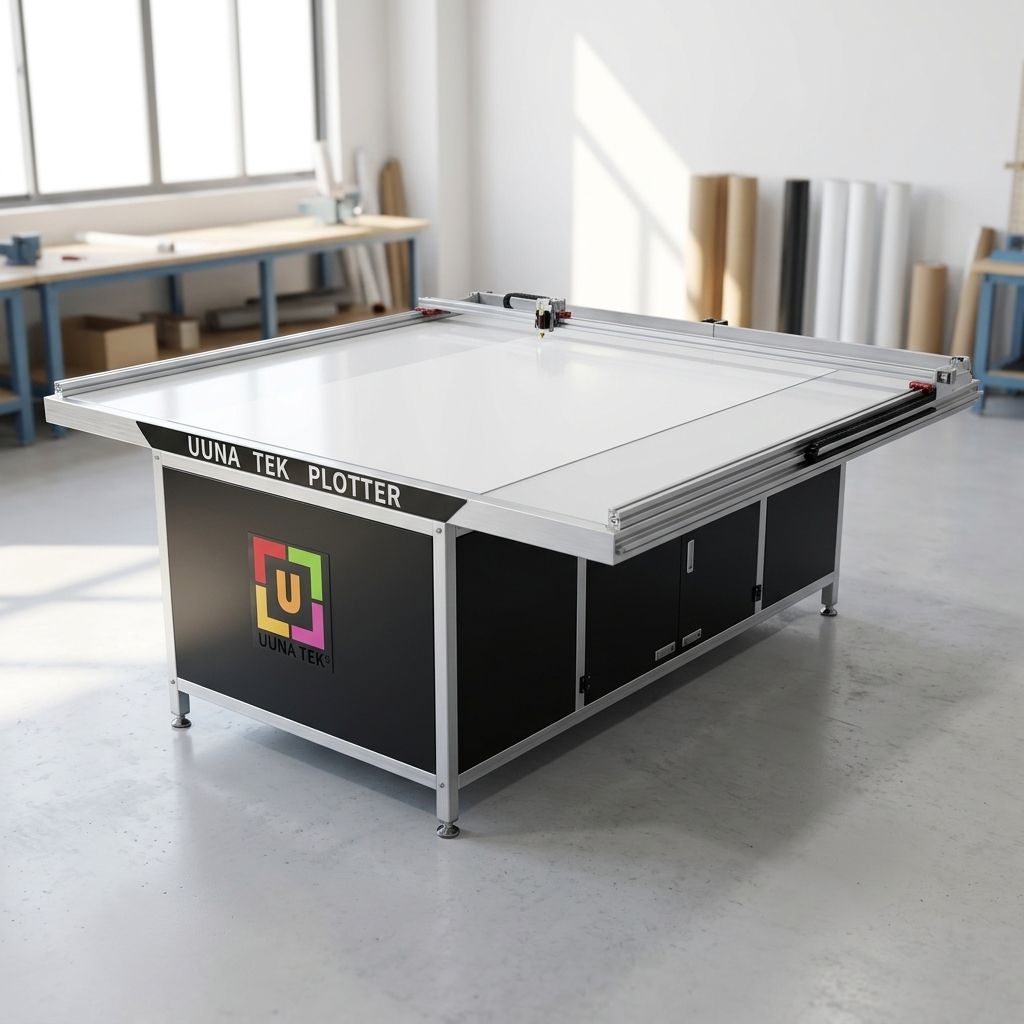

Engineering Plotter

The UUNA TEK 3.0 Engineering Series delivers an office ready industrial drafting machine designed to meet the rigorous output standards of corporate design departments and institutional labs. Built for 7x24 long run reliable plotting, this series serves as a high-fidelity commercial grade line schematic drawer. It replaces temperamental inkjet blueprinting with precise, permanent vector lines. Every unit is shipped as a preassembled turnkey plotter, allowing immediate integration into active project pipelines without costly downtime or specialized on-site field assembly.

Modern engineering offices, architecture firms, and state-backed design institutes require physical schematic outputs that match the flawless precision of their digital CAD models. Traditional wide-format inkjet systems introduce micro-scaling deviations due to paper slippage and thermal roller heat, compromising strict structural compliance.

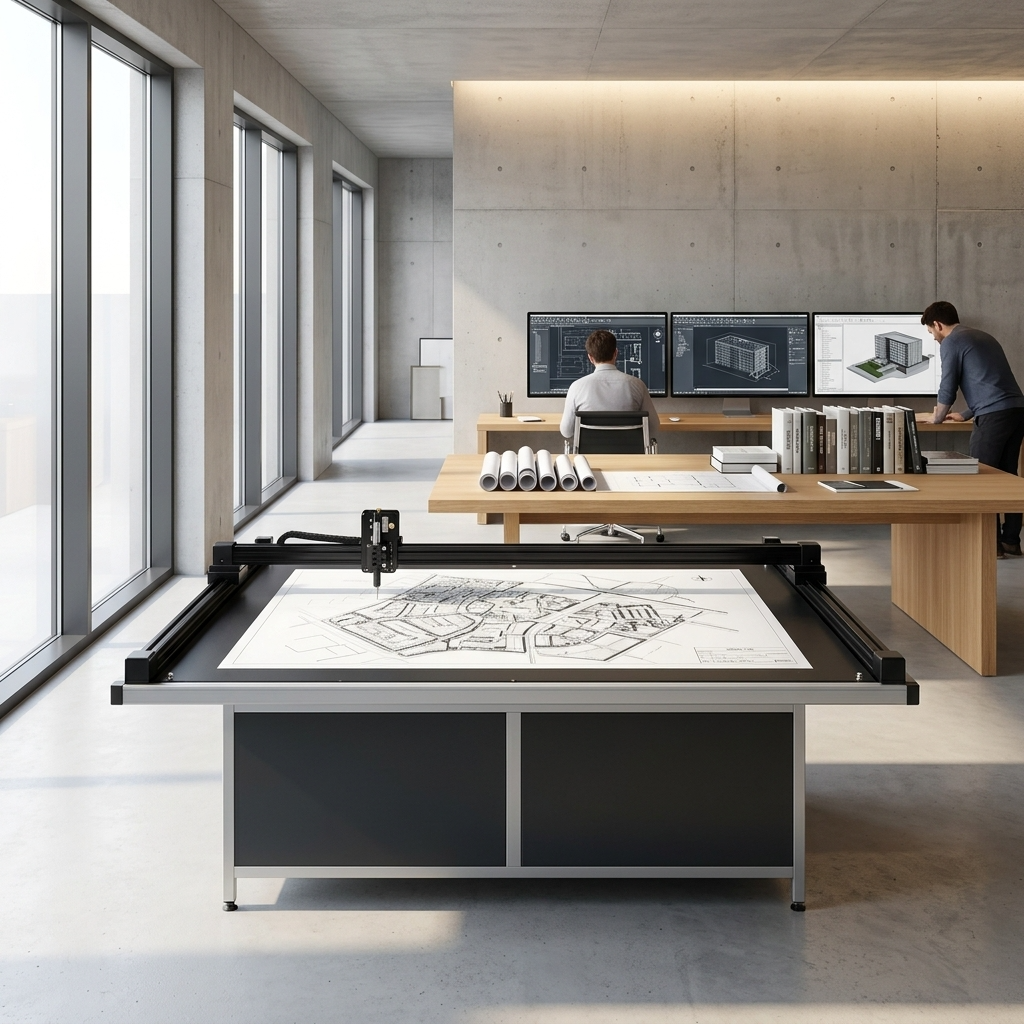

The UUNA TEK 3.0 flatbed architecture secures the blueprint medium flat on a rigid, heavy-duty chassis, eliminating spatial distortion. It functions as an unattended mechanical drawing robot, allowing engineers to queue highly complex structural layouts, cross-sections, and foundational schematics overnight with absolute confidence.

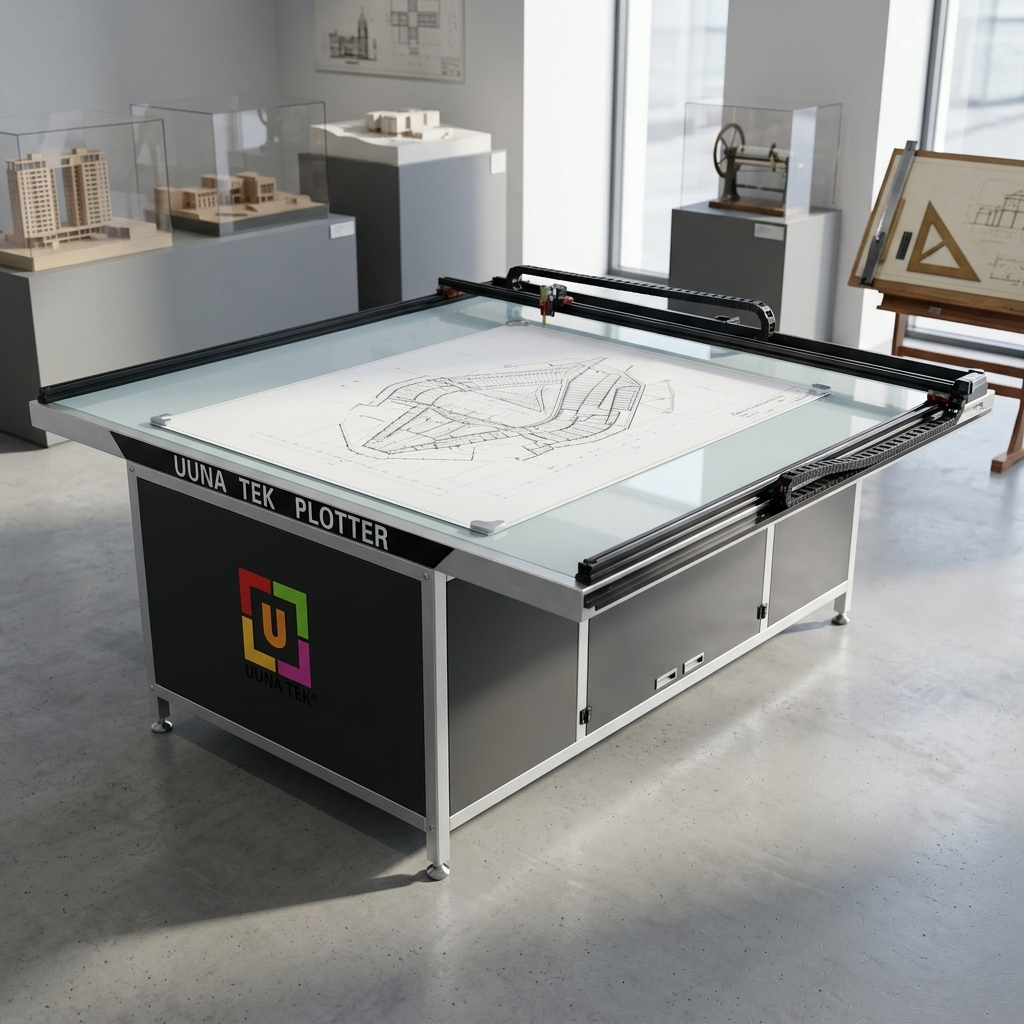

  • Plotter for Architectural Design Institutes: Flawlessly maps out high-density vector line-weights, fine text annotations, and multi-layer structural plans without bleeding, feathering, or scaling errors.

  • University Structural Engineering Lab Equipment: Provides civil engineering and architecture faculties with an open, highly durable, and multi-medium-compatible research platform for physical drafting validation.

  • Enterprise Blueprint Production Plotter Output: Built with commercial-grade, wear-resistant steel rails and high-torque synchronous drives to manage continuous, high-volume project deliveries.

20,000+ creators worldwide

Trusted by over 20,000 artists, designers, engineers, and educators globally who use our pen plotters for generative art, design, and creative automation workflows.

Free shipping & 1-year warranty

Every pen plotter includes free worldwide shipping and a 1-year warranty to ensure reliable performance, long-term protection, and worry-free ownership.

Beginner to industrial level systems

Our pen plotter lineup scales from beginner-friendly A4 models to professional CoreXY systems and large-format A0 machines for industrial-grade creative production.
結果リストにスキップ

絞り込み

2個のアイテム
出品状況

フィルター

出品状況

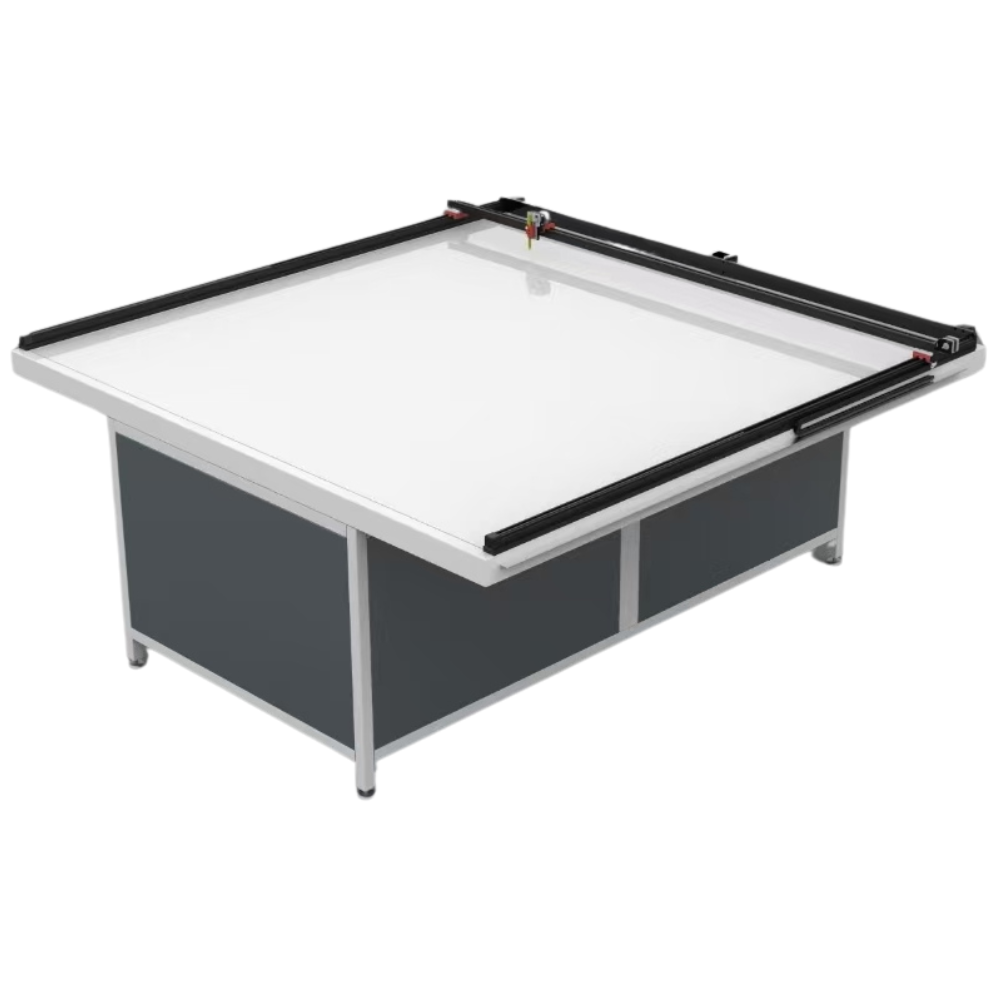

UUNA TEK 3.0 Series Engineering Plotters — Detailed Technical Specifications Matrix

Technical Category UUNA TEK 3.0 (A3) UUNA TEK 3.0 (A2) UUNA TEK 3.0 (A1) UUNA TEK 3.0 (A0) UUNA TEK 3.0 (2x1.25M) UUNA TEK 3.0 (2x2M)
🧱 Kinematics & Mechanics
Primary Classification Desktop Compact Precision Medium-Format Drafting Large-Format Engineering Full-Scale Workstation Industrial Prototyping Heavy-Duty Mega Flatbed
Target Application Mechanical Schematics & Dense Vectors Structural Layouts & Medium CAD Plans Sectional Blueprints & Elevation Panels Oversized Architectural Master Plans Packaging Diecuts & Cardboard Sampling Full-Scale 1:1 Industrial Prototyping
Effective Plotting Area 420 × 297 mm 594 × 420 mm 841 × 594 mm 1189 × 841 mm 2000 × 1250 mm 2000 × 2000 mm
Repeat Positioning Accuracy ±0.02 mm ±0.02 mm ±0.05 mm ±0.05 mm ±0.1 mm ±0.1 mm
Max X/Y/Z Motion Speed 20,000 mm/min
Base Plate Material 2mm Rigid Steel Plate 2mm Rigid Steel Plate 2mm Rigid Steel Plate 2mm Rigid Steel Plate 8mm Toughened Tempered Glass 8mm Toughened Tempered Glass
Frame Architecture Q235 Carbon Steel + Aluminum Alloy H-Frame Heavy Industrial Steel Structural H-Frame Reinforced Dual-Beam Heavy Frame Anti-Deflection Gantry Mega Frame
X-Axis Drive Mechanism Linear Guide Rail + Synchronous Belt Precision Rack & Pinion + Guide Rail Dual-Drive Sync Rack & Pinion + Rail
Y-Axis Motor Spec 42 Stepper Motor 42 Stepper Motor 42 Stepper Motor 57 Stepper Motor 57 High-Torque Stepper Motor Dual 57 Heavy-Duty Stepper Motors
Cable Protection Modular Internal Routing Nylon Silent Drag-Chain System Heavy-Duty Industrial Drag-Chain
🧠 Control & Integration
Motherboard Architecture GRBL-Based Controller Industrial-Grade GRBL Hardware
Data Command Protocol G-code (UART Protocol)
Connectivity Interface USB Type-B + Wireless WiFi + SD Card Offline USB + High-Gain WiFi + SD Card Standalone
Async Standalone Mode Yes (Supported on all variants via SD Card)
🖊️ Toolhead & Media Handling
Pen Carriage Mechanism Single Dual-Buffered Heavy-Duty Buffered Carriage Industrial Heavy-Load Z-Axis Carriage
Pen Angle Adjustment 0° – 90° Variable Adjustable Range
Max Substrate Thickness 30 mm 30 mm 30 mm 30 mm 40 mm (Modified Heavy-Duty) 40 mm (Modified Heavy-Duty)
Compatible Tools/Pens Technical Pens, Fine-Liners, Rapidographs, Ballpoints, Markers, Gel Pens, Drafting Callipers Heavy Technical Pens, Stylus Tools, Industrial Markers
💻 Software & Ecosystem
Supported Formats SVG, DXF, JPG, PNG, BMP, PDF SVG, DXF, PLT, GCODE, PDF
CAD Environment Sync AutoCAD, Rhino, Revit, SolidWorks, CorelDRAW, Illustrator, Inkscape, LightBurn AutoCAD, Rhino, SolidWorks, Packaging CAD Software Suite
OS Environment Support Windows & macOS Fully Supported (Intel & Apple Silicon Native)
⚡ Electrical & Environment
System Power Input AC 110V – 230V Universal Input Adapter
Internal Voltage DC 12V – 24V Adaptive DC 24V Industrial Dedicated Power
Rated Machine Power 20W 20W 24W 36W 60W 90W
Noise Levels < 60dB (Studio Workspace Quiet) < 65dB (Industrial Gantry Quiet)
📦 Logistical Dimensions & Deployment
Physical Machine Size 575×450×194 mm 758×580×194 mm 1018×785×205 mm 1366×1030×205 mm 2400×1650×300 mm 2400×2400×300 mm
Net Equipment Weight 11 kg 17.5 kg 32 kg 48 kg ~110 kg ~165 kg
Deployment Status 100% Preassembled Turnkey Out-of-the-Box Solution (Zero Mechanical Assembly Required)
```

Frequently asked questions

Q1: Why are design institutes choosing this flatbed model over standard wide-format inkjet blueprint printers for compliance reviews?

Answer: Standard wide-format inkjet plotters feed paper through rubber rollers under thermal tension, which naturally introduces micro-slippage and sheet stretching. This creates scaling errors that can violate strict regulatory compliance codes for 1:1 scale structural engineering audits. As a dedicated plotter for architectural design institutes, the UUNA TEK 3.0 locks the medium completely static on a rigid flatbed plane. Because the gantry moves across a stationary sheet, it acts as a flawless commercial grade line schematic drawer, ensuring absolute geometric fidelity and zero dimensional distortion for official archives.
Q2: Does this engineering plotter require specialized field technicians for on-site calibration or assembly?

Answer: No. Corporate procurement teams on LinkedIn frequently voice frustrations over hidden setup fees and delayed deployment times with industrial hardware. To eliminate this friction, the UUNA TEK 3.0 is engineered as a preassembled turnkey plotter. Every unit is fully built, squared, and calibrated at the factory before being secured into heavy-duty industrial wooden crates. Your facility team simply unboxes the unit, rests it on a level surface, and initiates production within 30 minutes—no specialized tooling or external technician contracts required.
Q3: Can the machine operate continuously in an open-plan office without disrupting our design and administrative staff?

Answer: Yes, this is a core design feature of our office ready industrial drafting machine. Traditional wide-format plotters generate intense mechanical vibration and loud fan noise. The UUNA TEK 3.0 integrates advanced silent stepper-motor drivers and self-lubricating polymer guide tracks to function as a low noise 60dB engineering plotter. The operational acoustic footprint is equivalent to a quiet office background hum, allowing it to run next to engineering desks or inside executive conference rooms without disrupting professional focus.
Q4: How does the hardware maintain accuracy during 7x24 long run reliable plotting for high-volume project deadlines?

Answer: A common complaint on Reddit's r/CAD is that consumer-grade drawing arms suffer from layer drift or "skipped steps" during complex, multi-hour vector tracks. Our system is built on an industrial-grade GRBL framework powered by high-torque NEMA stepper motors and steel-reinforced synchronization gantries. This robust mechanical architecture guarantees 7x24 long run reliable plotting, allowing engineering firms to queue high-density foundation layouts and massive structural schematics overnight with zero risk of line misalignment or mid-job mechanical failure.
Q5: Can this system run completely autonomously as an unattended mechanical drawing robot?

Answer: Absolutely. The UUNA TEK 3.0 is designed to operate as a fully unattended mechanical drawing robot. Equipped with an advanced asynchronous offline controller, operators can push compiled vector assets directly over local secure WiFi or via a physical SD Memory Card. Once the job is initiated on the plotter's interface, the workstation computer can be safely disconnected, shut down, or repurposed for heavy 3D rendering tasks. The machine handles the entire drawing cycle autonomously from start to finish.
Q6: Why is this flatbed system highly rated as university structural engineering lab equipment?

Answer: Academic procurement officers choose this system as university structural engineering lab equipment due to its open-medium versatility and mechanical durability. Unlike commercial wide-format printers that lock departments into expensive, proprietary ink cartridges that clog during periods of academic recess, our open-toolhead carriage accepts standard technical pens, rapidographs, and pigment markers. This allows engineering faculties to run multi-material plotting tests, architectural history replications, and student lab assignments at a near-zero operational cost.
Q7: What is the long-term maintenance overhead and Total Cost of Ownership (TCO) for this enterprise blueprint production plotter?

Answer: On X (formerly Twitter), procurement managers frequently highlight the "inkjet trap"—where replacement printheads and proprietary ink maintenance tanks outcost the original printer within two years. The UUNA TEK enterprise blueprint production plotter breaks this cycle. It features no liquid ink tubes to dry out, no delicate jet nozzles to clog, and no scheduled corporate maintenance lockouts. The solid steel and aluminum rails only require a simple wipe and light lubrication every few months, making long-term operational costs highly predictable.
Q8: How does the machine handle multi-layer structural CAD blueprints that require different line weights or colors?

Answer: The system natively mirrors professional CAD layer structures. In software platforms like AutoCAD, Revit, or Rhino, engineers organize distinct schematic systems (such as centerlines, concrete reinforcement matrices, or electrical conduits) into color-coded layers. The UUNA TEK control environment reads these vectors sequentially. The machine applies optimized velocity and tool pressure for each layer, and can automatically pause to prompt the operator for a fast technical pen swap before flawlessly continuing from the exact same coordinate coordinate space.
Q9: What vector file formats and corporate IT operating systems are supported out of the box?

Answer: To ensure seamless integration into corporate IT environments, the plotter natively accepts standard industry-standard vector formats, including .dxf (CAD standard), .svg, and .plt (HPGL). It requires no specialized proprietary software wrappers and connects effortlessly to both Windows and macOS platforms (including native compatibility with Apple Silicon chips), allowing your existing design team to output files directly from their native workflows.
Q10: How is the plotter protected during international transit to ensure it arrives in perfect calibration?

Answer: To safeguard institutional capital investments, all engineering-series gantries are mechanically locked down via specialized transit brackets to eliminate axis shifting. The entire machine is then encased in a custom-engineered, shock-absorbing industrial wooden crate. This rigorous protective structure guarantees that your plotter arrives in absolute factory alignment, completely eliminating the risk of transit deflection or calibration loss during shipping.
