Laser engraving is no longer limited to industrial machines. With modern pen plotter with laser systems, you can easily switch between drawing and engraving on a single device.
This guide explains how to use LaserGRBL software on Windows with iDraw machines—and importantly, the same workflow is fully compatible with both iDraw H Pen Plotter and iDraw 2.0 A4 Pen Plotter, giving users a flexible entry into laser engraving. Related article: How to Laser Engrave with LightBurn on Mac (iDraw Setup Guide for H & 2.0 A4)
👉 Recommended Product Line:
• iDraw H Pen Plotter
• iDraw 2.0 A4 Pen Plotter
👉 View iDraw H Product
👉 View iDraw 2.0 A4 Product
Compatibility Overview: Two Systems, One Workflow
Both iDraw H Pen Plotter and iDraw 2.0 A4 Pen Plotter support laser engraving when equipped with the laser module.
They share the same workflow:
- LaserGRBL software control
- USB connection setup
- G-code based engraving process
- Adjustable speed and power settings
Key takeaway: The same laser engraving method applies to both professional (H series) and entry-level (A4) iDraw systems.
Why iDraw Works as a Laser Engraver Plotter
- Switch between pen drawing and laser engraving
- Use one software for multiple machines
- Support creative and commercial production
- Scale from hobby use to studio workflows
This makes iDraw a flexible laser engraver plotter solution for global users.
Step 1: Prepare Your iDraw Machine
- Assemble your iDraw device properly
- Install the laser module securely
- Place material flat on the working surface
- Ensure stable power and USB connection
Note: Both iDraw H and iDraw 2.0 A4 follow the same preparation process.
Step 2: Install LaserGRBL Software
- Download and install LaserGRBL (Windows recommended)
- Launch the software after installation
- Prepare workspace for device connection
LaserGRBL serves as the control center for your iDraw laser engraver system.
Step 3: Connect iDraw to LaserGRBL
- Plug iDraw into your computer via USB
- Turn on the machine
- Open LaserGRBL
- Click “Connect” and select the detected port
Both iDraw H and iDraw 2.0 A4 use the same connection method.
Step 4: Set Origin and Laser Focus
- Move laser head to lower-left origin point
- Turn on laser module power
- Activate low-power test mode (e.g., 3%)
Then adjust focus:
- Rotate focusing ring on laser head
- Reduce laser dot to smallest possible point
Warning: Always wear laser safety glasses during operation.

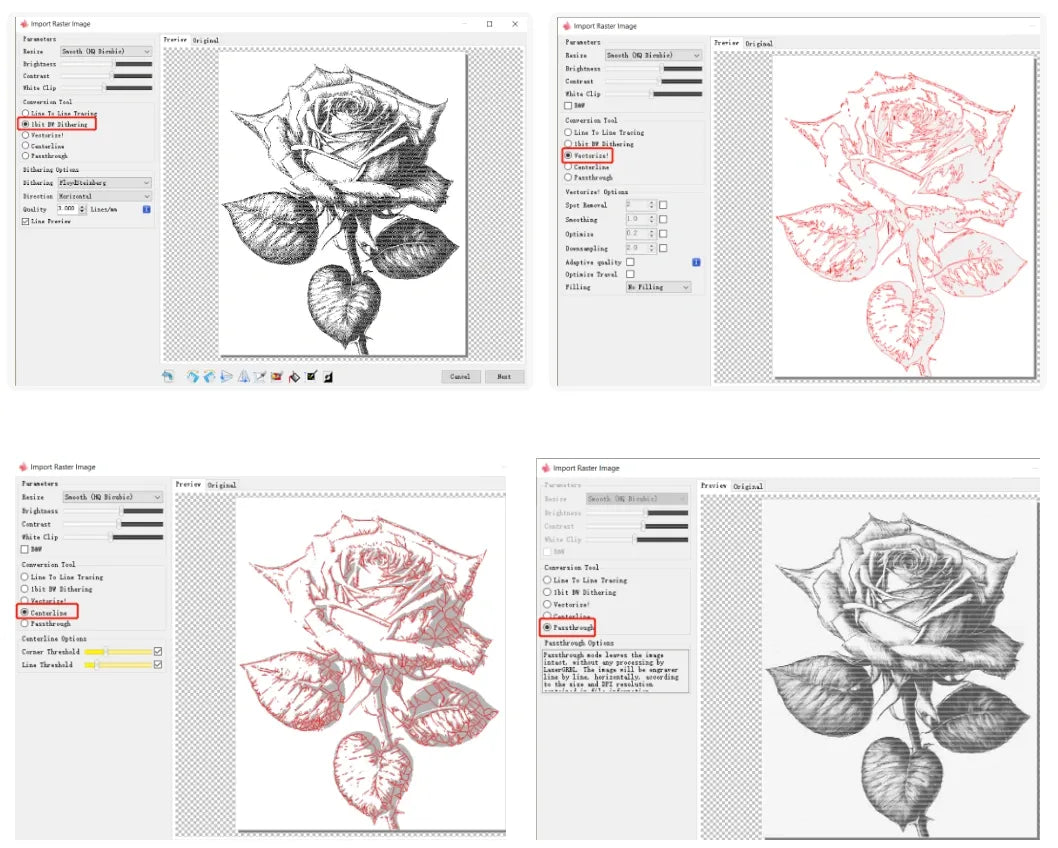

Step 5: Import and Configure Design
LaserGRBL supports multiple formats:
- SVG
- DXF
- BMP
- Import your design file
- Resize and position artwork
- Adjust speed (material-dependent)
- Set laser power and resolution
Settings are identical for both iDraw H and iDraw 2.0 A4 systems.
Step 6: Preview and Start Engraving
- Use preview mode to check alignment
- Ensure material is securely fixed
- Adjust idle speed if needed (≤1500 recommended)
Then:
- Click “Run” in LaserGRBL
- Monitor engraving process in real time
Your pen plotter with laser will now begin engraving.
Use Cases for iDraw Laser Systems
- Custom wood engraving
- Creative artwork production
- Personalized gifts
- Small batch manufacturing
- STEAM education projects
Why Choose iDraw H & iDraw 2.0 A4?
iDraw H Pen Plotter
- Professional-grade structure
- Larger working area
- Suitable for production environments
iDraw 2.0 A4 Pen Plotter
- Compact and beginner-friendly
- Affordable entry into laser engraving
- Ideal for learning and small projects
Together, they form a complete iDraw laser engraver ecosystem.
Conclusion
With LaserGRBL and iDraw systems, users can build a flexible engraving workflow. Whether using the iDraw H Pen Plotter for advanced production or the iDraw 2.0 A4 Pen Plotter for entry-level use, both deliver powerful laser engraving capability.
This makes iDraw one of the most adaptable laser engraver plotter solutions available today.
